Roof Tubular Skylight
SOLAR DAY TUBE
We Reduce Electric Consumption & Provide a Healthy Ambiance

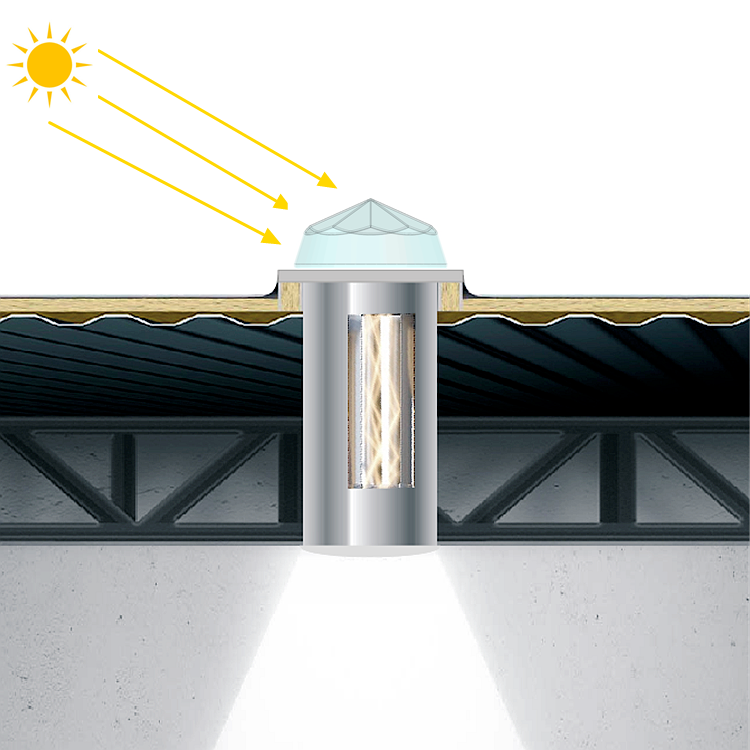

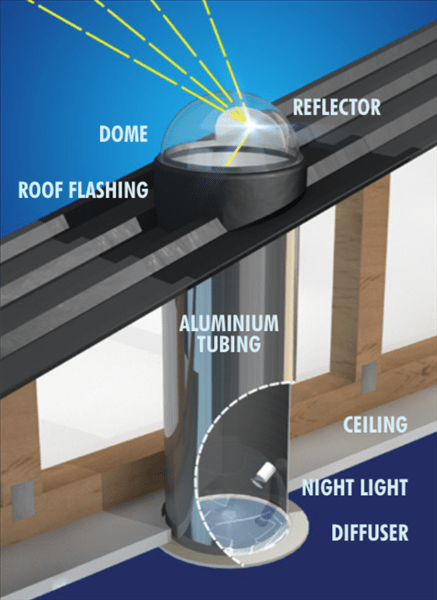

Solar Day tube Consists of 3 Elements:
Light Collector
Reflective System
Light Diffuser
LIGHT COLLECTOR:
Redirects low-angle sunlight for maximum
light capture.
Provides Consists daylighting throughout
the day.
Rejects overpowering summer midday
sunlight.
Blocks UV Radiation
REFLECTION TUBE:
Delvers 99.7% specular reflectivity for
maximum sunlight
transfer.
High continuous Reflective system.
Provides the purest color rendition
Durable & Long life
LIGHT DIFFUSER:
Distribute Uniform Light
Delivers required Light
Glar Free
Human Comfort
Dome shape wider distribution
BRIGHT LIGHT DIFFUSER:
High Light Transmission
Medium Light Distribution
Applicable for high roof Industrial
buildings/Warehouses/Commercial
buildings
Dome shape wider distribution
SOFT WHITE DIFFUSER:
Soft, Pleasing Light
High Lighting distribution
Applicable for low roof
Application-Offices &
Residences
Dome & Flat Shaped diffuser
options
HEAT TRANSFER:
Solar Day Tube is designed to minimize
heat transfer
High performance light collector
partially rejects mid noon sunlight
Static air column of the pipe
(Reflection Tube) minimizes heat
transfer
